Name: School Classroom Teaching 65 75 86 98 110 Inch Touchscreen Smart Board IFPD Interactive Flat Panel Display
Brand: Hangzhou Gaoke Industry&trade Co., Ltd.
SKU: GK-880T/65S-A9
Availability: InStock

Home Products Model A

School Classroom Teaching 65 75 86 98 110 Inch Touchscreen Smart Board IFPD Interactive Flat Panel Display

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	GAOKEview
Model Number:	GK-880T/65S-A9

Contact Now

Detailed Product Description

Folded:	NO	Whiteboard Type:	Interactive Whiteboard
Warranty:	1 Year	Weight:	52KG
Color:	Black	Aspect Ratio:	1600:1
Package Dimensions:	1660x180x1035mm	Writing Method:	Pen/finger Touch
Product Dimension:	1511.6x87.8x920.6mm	Panel Style:	LED
Maximum Resolution:	3840 X 2160	Touch Points:	20 Points
Feature:	Multi Touch	Application:	For Business
Interface:	HD MI+USB Type-C	Operating System:	Android + Win7/10 Option
Material:	Aluminum Alloy	Brightness:	350cd/m2
Touch Type:	Finger Touch	Technology:	Infrared Touch Screen Multi-Touch
Model Name:	GK-880T

Products Description

GAOKEview interactive flat panel for Mode A9-T982

Display Parameter
Size	65inch	75inch	86inch
Panel Brand	BOE	BOE	LG
Backlight Type	D-LED	D-LED	D-LED
Resolution(pixels)	3840x2160(pixels,RGB)	3840x2160(pixels,RGB)	3840x2160(pixels,RGB)
Brightness	350cd/m2(typ.)	400cd/m2(typ.)	400cd/m2(typ.)
Visual Ratio	16:9	16:9	16:9
Contrast Ratio	1600:1	1600:1	1200:1
Response Time	8ms (typ.)	8ms (typ.)	8ms (typ.)
Pixel Pitch (mm)	0.372(H)x0.372(V)	0.4296(H)x0.4296(V)	0.4935(H)x0.4935(V)
Refreshing Frequency	60Hz	60Hz	60Hz
Viewing Angle	178°(H) / 178°(V)	178°(H) / 178°(V)	178°(H) / 178°(V)
Life Time	50,000 Hrs (min.)	50,000 Hrs (min.)	50,000 Hrs (min.)
View Area (mm)	1428.48(H)x803.52(V)	1649.66(H)x927.936(V)	1895.04(H)x1065.96(V)
Color Gamut (X% NTSC)	72%(typ.)	72%(typ.)	72%(typ.)
Display Colors	1.07G(8bit+FRC)	1.07G(8bit+FRC)	1.07G(8bit+FRC)

System
Chipset			T982
CPU	Architecture	Cortex-A55
		Working Frequency	Max 1.8GHz
		Core	Quad Core
GPU			Mali-G52 MP2 (2EE)
RAM			Standard:4GB DDR4 Optional:8GB DDR4
ROM			Standard:32GB Optional:64GB/128GB
OS			Android 13.0
Power Requirements			AC 200V ~ 240 V, 50/60 Hz
Power Requirements				AC 100V ~ 240 V, 50/60 Hz(Optional)
Power Consumption Without OPS	65inch	220W
		75inch	300W
		86inch	380W
Standby Condition			<0.5W
Audio Output Power			2x15W/8Ω
OPS Power			DC 18V/5A

I/O Interface
Front Interface	Public USB	x2	Version: USB3.0 Interface: Type-A
		Touch-USB	x1	Touch interface for HDMI Interface: USB2.0 Type-B
		HDMI IN	x1	Version: HDMI2.0 Up to 3840x2160@60Hz
		Type-C USB	x1	Power output：15W(5V/3A) Up to 3840x2160@60Hz Support DRP mode Interface: Type-C
Rear Interface	HDMI IN	x2	Version: HDMI2.0 Up to 3840x2160@60Hz HDMI1 support ARC function
		DP IN (Optional)	x1	Version: DP1.2a Up to 3840x2160@60Hz
		HDMI OUT (Optional)	x1	All signal can be loop-outed Max Resolution: 3840x2160@60Hz Version：HDMI2.0
		USB 2.0	x1	Support images, music, video file, Playback, only can use this USB port to upgrade. Interface:USB2.0 Type-A
		USB 3.0	x1	Support images, music, video file playback. Upgrade are not supported Interface:USB3.0 Type-A
		Touch-USB	x1	Touch interface for HDMI1 Interface: USB2.0 Type-B
		Touch-USB	x1	Touch interface for HDMI2 Interface: USB2.0 Type-B
		Touch-USB (Optional)	x1	Touch interface for DP Interface: USB2.0 Type-B
		LAN	x2	10M/100M/1000M Base-T Support internet switch to OPS(10M/100M/1000M) to Android(10M/100M/1000M) Interface: RJ45
		MIC IN	x1	Can Mix the MIC input and other input source to SPK OUT Interface: Φ3.5mm mini
		RS232 IN	x1	Interface: DB9
		SPDIF OUT	x1	Max speed: 16Mbps Interface: Optical
		Audio OUT	x1	Output level: 110±40mVrms (@500mVrms,1KHZ) Interface: Φ3.5mm mini interface

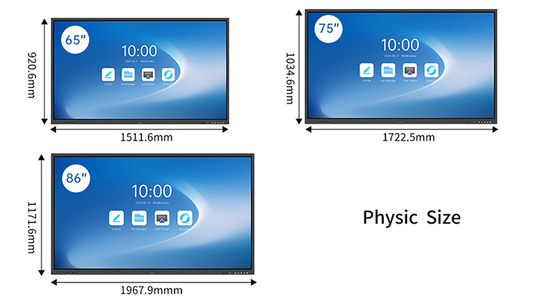

Structure Parameter
Size	65inch	75inch	86inch
Product Size (W x D x H)	1482.1.6x87.7x897.4mm	1716.5x86.9x1031.8mm	1961.8x87.7x1169.9mm
Package Size (W x D x H)	1640x185x1010mm	1860x185x1125mm	2095x185x1265mm
Housing Material (Face frame/rear shell)	Aluminum/Metal Plate	Aluminum/Metal Plate	Aluminum/Metal Plate
Shell color (Face frame/rear shell)	Black/Black	Black/Black	Black/Black
VESA	M8 Screw Hole 600mmx400mm	4-M8 Screw Hole 800mmx400mm	4-M8 Screw Hole 800mmx600mm
Net Weight	40±1KG	53±1KG	68±1KG
Gross Weight	52±1KG	72±1KG	82±1KG
