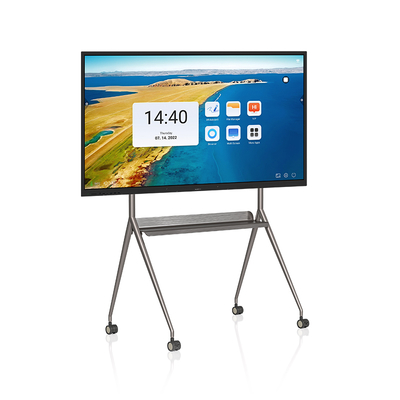

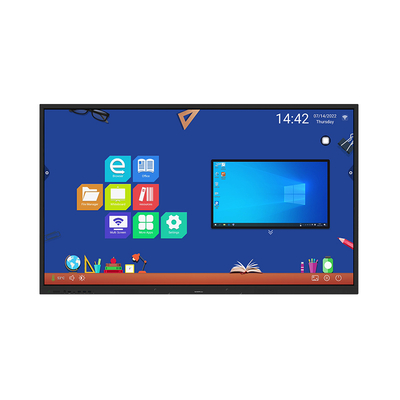

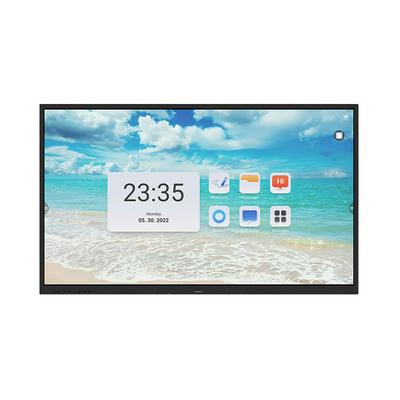

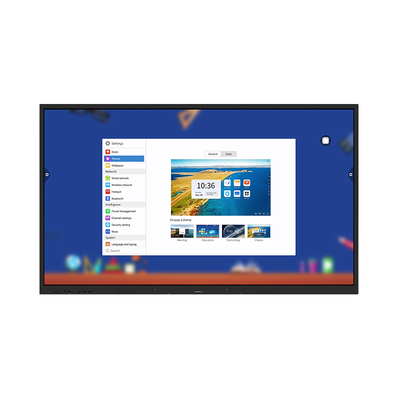

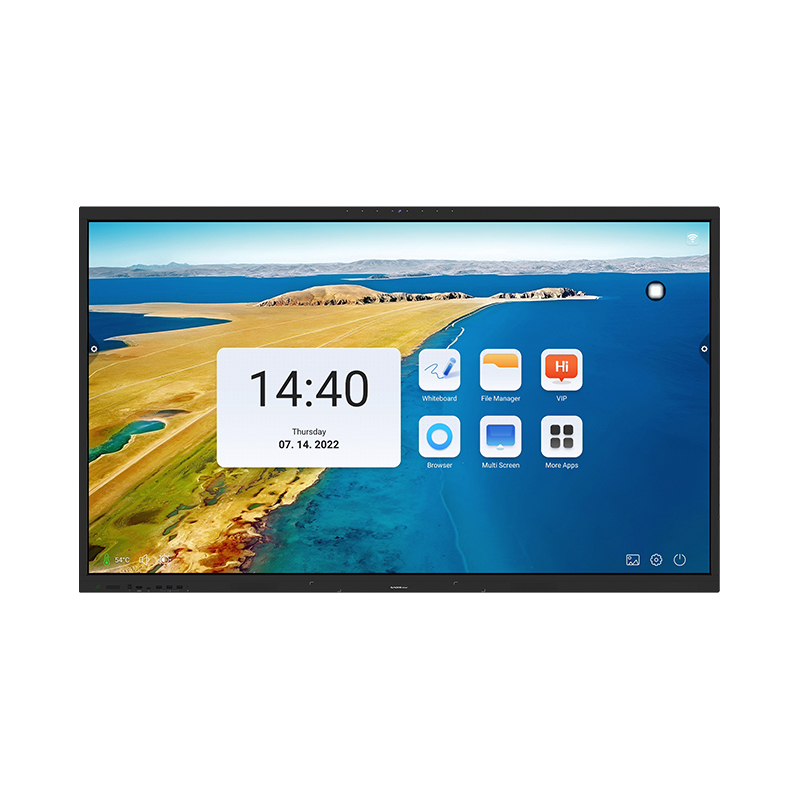

Name: 86 Inch Smart Monitor Tou Ch Screen Interactive Board Flat Panel for Office
Brand: Hangzhou Gaoke Industry&trade Co., Ltd.
SKU: GK-880T/75S-H2
Availability: InStock

Home Products Model Q

86 Inch Smart Monitor Tou Ch Screen Interactive Board Flat Panel for Office

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	GAOKEview
Model Number:	GK-880T/75S-H2

Contact Now

Detailed Product Description

Folded:	NO	Whiteboard Type:	Interactive Whiteboard
Weight:	69kg	Color:	Black
Aspect Ratio:	1200:1	Package Dimensions:	1785x1125x200mm
Writing Method:	Pen/finger Touch	Product Dimension:	1712.9x1030.9x89.15mm
Screen Size:	75 Inch	Panel Size:	75inch, 75inches
Resolution:	3840x2160, 3840*2160	Touch Screen:	Infrared Touch
Aspect Ratio:	16:9	Screen Brand:	BOE/AUO
Response Time:	6ms	Viewing Angle:	178°(H) / 178°(V)
Brightness:	350cd/m²(typ.)	Refreshing Frequency:	60HZ
Panel Type:	LED

_{GAOKEview Interactive Flat Panel}
_{Specification-Mode H2-T982}

Products Description

Product packaging

Product Paramenters

GAOKEview Interactive Flat Panel Specification-Mode H2-T982

Model	GK-880T/65S-H2	GK-880T/75S-H2	GK-880T/86S-H2
Backlight Type	D-LED
Resolution(pixels)	3840x2160(pixels,RGB)	3840x2160(pixels,RGB)	3840x2160(pixels,RGB)
Brightness	350cd/m2(typ.)	350cd/m2(typ.)	350cd/m2(typ.)
Contrast Ratio	1200:1(typ.)	1200:1(typ.)	1200:1(typ.)
Response Time	8ms (typ.)	8ms (typ.)	8ms (typ.)
Pixel Pitch (mm)	0.4935(H)x0.4935(V)	0.4298(H)x0.4298(V)	0.4935(H)x0.4935(V)
Refreshing Frequency	60Hz	60Hz	60Hz
Viewing Angle	178°(H) / 178°(V)
Life Time	50,000 Hours (min.)
Color Gamut (X% NTSC)	72%(typ.)
View Area (mm)	1428.48(H)x803.52(V)mm	1649.74(H)x927.94(V)mm	1895.04(H)x1065.96(V) mm
Display Colors	1.07B(10bit)	1.07B(10bit)	1.07B(10bit)
System
Chipset			Amlogic T982
CPU	Architecture	Quad-core A55
		Working Frequency	1.9GHz
		Core	Quad Core
GPU			Mali G52MP2
RAM			4GB DDR4/6GB DDR4(Optional)/8GB DDR4(Optional)
ROM			EMMC 32GB/ 64GB(Optional) / 128GB (Optional)
OS			Android 11.0
Power Requirements			AC 100 V ~ 240 V, 50/60 Hz
Power Consumption Without OPS			65’’: 250W 75’’: 350W 86’’: 450W
Standby Condition			<0.5W
Audio Output Power			15W*2
I/O Interface
Rear Interface	RJ451; SPDIF OUT1; EARPHONE (3.5mm AUDIO OUT)1; AV IN1; AV OUT1; YPBPR IN1; VGA IN1; VGA AUDIO IN1; HDMI IN4; RS2321; TOUCH USB1; USB2.02
Front Interface	Public USB 3.03; Touch-USB1; HDMI IN1; Type-C1
Structure Parameter
Product Size(W x D x H)	1488.489291.6mm	17101022.689.6mm	1934.81149.189.6mm
Package Size(W x D x H)	16101020190mm	18501150205mm	20801280205mm
Housing Material (Face frame/rear shell)	Aluminum/Metal Plate	Aluminum/Metal Plate	Aluminum/Metal Plate
Shell color (Face frame/rear shell)	Dark Gunmetal/Black	Dark Gunmetal/Black	Dark Gunmetal/Black
VESA	4-M8 Screw Hole 400mmx400mm	4-M8 Screw Hole 600mmx400mm	4-M8 Screw Hole 600mmx400mm
Net Weight	31.32±1KG	44.29±1KG	57.99±1KG
Gross Weight	41.8±1KG	57.69±1KG	73.19±1KG
OPS PC	Proecessor INTEL®CORE I3 ; RAM with 4 GB ; Storage SSD 128 GB ( OPTIONAL OR CUSTOMIZED )

FAQ

Q:Are you the factory or the trading company of Touch Screen TV?

A:we are the factory in Hangzhou city,Zhejiang province,we can OEM/ODM for you.

Q: How long is the warranty time for your company of Touch Screen TV?

A:We offer 2 year warranty after the delivery.

Q:What payment method your company accept?

A:We accept most of the payment methods,but mainly by TT,other payment term is negotiable.

Q:Can I customize product as my request of Touch Screen TV?

A:Absolutely yes,we can customized as your requirement of Touch Screen TV.

Q:What will you do if the products were being natural damaged within the warranty time and how about out that time?

A:Well,we will give some simple question to you or get the picture from your side to help us confirm the damaged parts,Once confirmed,the free replacement will be sent for you.If over the warranty time,we will ask for a very low factory price for the replacement part.
